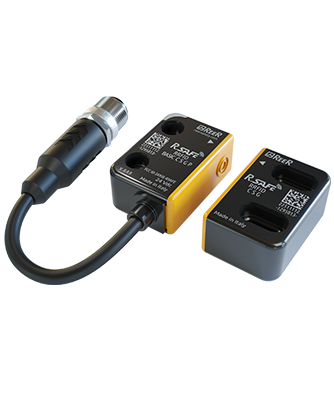

R-SAFE RFID BASIC C S G P

PL e

Safety level

RFID switches

Sensor type

Actuator coded

Coding type

12 … 25

Switching distance (mm)

Request info

Generic Coding: the actuator is free and not specifically assigned to the sensor (one actuator can work with multiple sensors)

Safety level	PL e
Safety inputs	2 digital inputs
Safety level (SIL / PL)	SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 25 ... 70
Response time (ms)	55
Sensor type	RFID switches
Safety output type	2 OSSD (300 mA at 24 VDC) with protection against short circuit
PFHD (IEC 61508)	3,58E-09
Materials suitable for food applications	Yes
Min. switching current at 24 VDC (mA)	300
Safety outputs	2 OSSD pairs (300 mA)
Test outputs	1
LED signalling	3 colour LED status signalling
Coding type	Actuator coded
Product class	C
Custom tariff	9032890
Connection type	Pigtail

Power supply (VDC)	24 ± 20%
Connector	Pigtail M12 5-pole Male

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here

TÜV SÜD certificate - R-SAFE RFID Safety switches

UL Mark for USA and Canada
