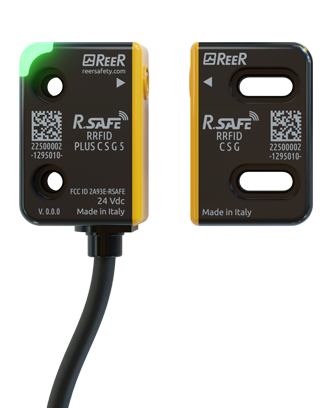

R-SAFE RFID PLUS C S G 3

PL e

Safety level

RFID switches

Sensor type

Actuator coded

Coding type

12 … 25

Switching distance (mm)

Request info

Generic Coding: the actuator is free and not specifically assigned to the sensor (one actuator can work with multiple sensors)

Safety level	PL e
Safety inputs	2 digital inputs
Safety level (SIL / PL)	SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 25 ... 70
Response time (ms)	55
Sensor type	RFID switches
Safety output type	2 OSSD (300 mA at 24 VDC) with protection against short circuit
PFHD (IEC 61508)	3,58E-09
Materials suitable for food applications	Yes
Min. switching current at 24 VDC (mA)	300
Safety outputs	2 OSSD pairs (300 mA)
Test outputs	1
LED signalling	3 colour LED status signalling
Cable length (m)	3
Coding type	Actuator coded
Product class	C
Custom tariff	9032890
Connection type	Cable

Power supply (VDC)	24 ± 20%
