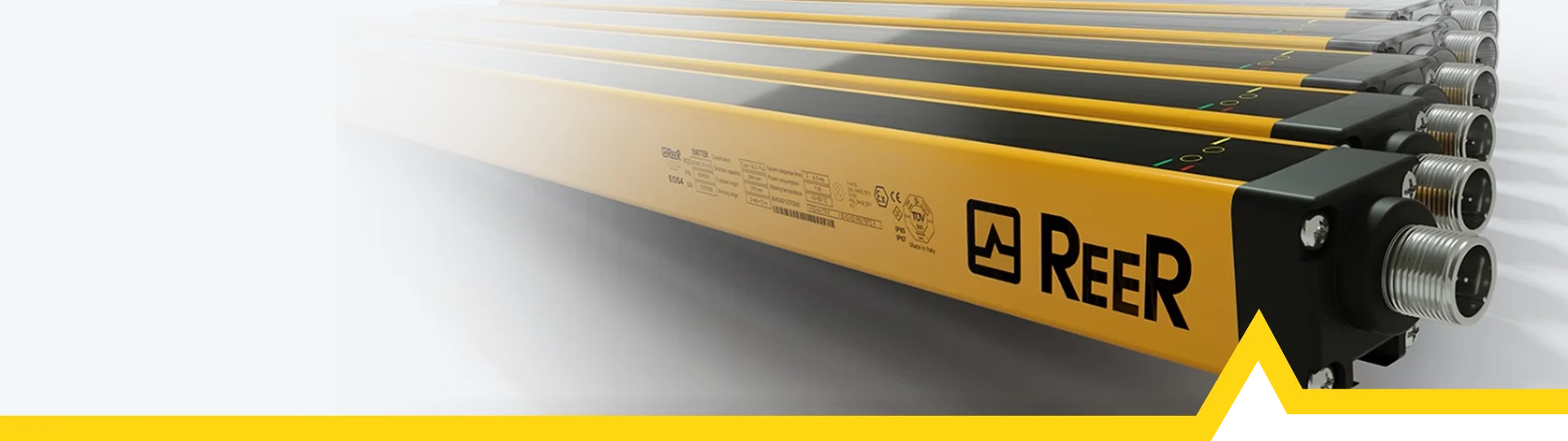

Light Curtains For Industrial Safety Applications

The Admiral serie of safety light curtains, with integrated Blanking functions, is the ideal solution for the protection of the majority of high-risk industrial applications. Long Range models with 2, 3 and 4 allow beams reach a max. of 60 m, while the Dual beams models reaches the max. of 80 m.

Safety light curtains with integrated Muting function for the protection of high-risk industrial applications, in particular those requiring a highlevel of integration of the muting functions. SAFEGATE guarantees the integration of the muting sensors that can be connected directly to the safety light curtain. Programmable models (SMPO) functional parameters configuration can be managed via Safegate Configuration Software (SCS)

Safety light curtains with integrated Muting function. The Janus series is the solution for the protection of a vast number of high-risk industrial applications, in particular those requiring a high level of integration of the safety functions. For example, in the models with built-in Muting function, Janus guarantees the independence of the light grid from the control circuits of the system (often distant from the protected gate) and, where necessary, also the integration of the Muting sensors. Settings of each function integrally performed via themain connector.

EOS2 is a compact safety light curtain range with competitive performance and innovative features. Includes models with integrated safety functions such as self-monitoring static outputs, control of external contactors (EDM), and selectable automatic or manual restart. 2 safety PNP static outputs. Easy connection and installation thanks to the M12 connectors and the use of unshielded cables up to 100 meters.

Safety light curtains for the protection of the majority of industrial applications in Category 2. Test function, activated automatically and periodically, without interruption of the operation of the machine being controlled. The breadth of the range, including MXL models with integrated Muting function.
