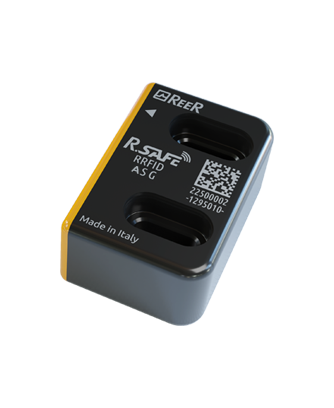

Individual Coding: the actuator is programmed via teach-in and permanently assigned to the sensor during set-up (the process can be repeated if necessary)
PL e
Safety levelRFID switches
Sensor typeIndividual coding
Coding type12 … 25
Switching distance (mm)
Features
Safety level | PL e |
Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
Operating temperature (°C) | - 25 ... 70 |
Sensor type | RFID switches |
Materials suitable for food applications | Yes |
Coding type | Individual coding |
Product class | C |
Custom tariff | 9032890 |
Mechanical data
Dimensions HxWxD (mm) | 28,5 x 42 x 18 |
Degree of protection | IP67 - IP69K (connector excluded) |
Fastening | M4 screws (e.g. M4 x 20) |
Switching distance (mm) | 12 … 25 |
Size | 22 mm interaxis |
TÜV SÜD certificate - R-SAFE RFID Safety switches
CAD Drawing
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Technical drawings
This section is reserved for registered users.
Do you already have an account? Please log in
If you are not registered yet you can register here
Technical Description
Individual Coding: the actuator is programmed via teach-in and permanently assigned to the sensor during set-up (the process can be repeated if necessary)
Technical Data
Features
Safety level | PL e |
Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
Operating temperature (°C) | - 25 ... 70 |
Sensor type | RFID switches |
Materials suitable for food applications | Yes |
Coding type | Individual coding |
Product class | C |
Custom tariff | 9032890 |
Mechanical data
Dimensions HxWxD (mm) | 28,5 x 42 x 18 |
Degree of protection | IP67 - IP69K (connector excluded) |
Fastening | M4 screws (e.g. M4 x 20) |
Switching distance (mm) | 12 … 25 |
Size | 22 mm interaxis |
Certificates
TÜV SÜD certificate - R-SAFE RFID Safety switches
