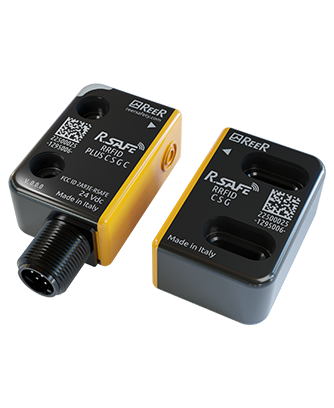

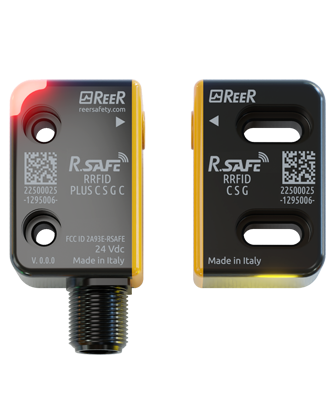

R-SAFE RFID PLUS C S T C

PL e

Safety level

RFID switches

Sensor type

Individual coding

Coding type

12 … 25

Switching distance (mm)

Request info

Download Pdf

Technical Description
Technical Data
Documents
Certificates
Technical Drawings

Individual Coding: the actuator is programmed via teach-in and permanently assigned to the sensor during set-up (the process can be repeated if necessary)

Features

Safety level	PL e
Safety inputs	2 digital inputs
Safety level (SIL / PL)	SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 25 ... 70
Response time (ms)	55
Sensor type	RFID switches
Safety output type	2 OSSD (300 mA at 24 VDC) with protection against short circuit
PFHD (IEC 61508)	3,58E-09
Materials suitable for food applications	Yes
Min. switching current at 24 VDC (mA)	300
Safety outputs	2 OSSD pairs (300 mA)
Test outputs	1
LED signalling	3 colour LED status signalling
Coding type	Individual coding
Product class	C
Custom tariff	9032890
Connection type	Connector

Electrical data

Power supply (VDC)	24 ± 20%
Connector	M12 8-pole Male

Mechanical data

Dimensions HxWxD (mm)	28,5 x 57 x 18
Degree of protection	IP67 - IP69K (connector excluded)
Fastening	M4 screws (e.g. M4 x 20)
Housing	Polyketone (POK) / rectangular
Switching distance (mm)	12 … 25
Size	22 mm interaxis
