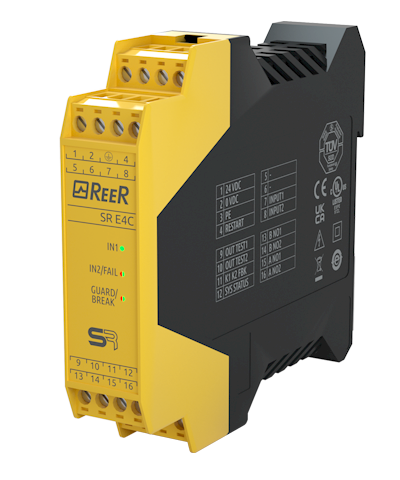

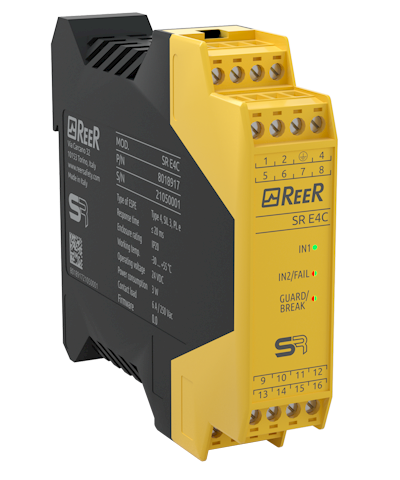

SR E4C

PL e

Safety level

Safety relay outputs

Request info

Safety interface for monitoring emergency stop buttons and safety switches

With 2 NO guided-contact safety relays
Manual monitored Start/Restart

EDM Feedback input for external contactors monitoring. With screw terminal blocks

Safety interface for monitoring emergency stop buttons and safety switches

With 2 NO guided-contact safety relays
Manual monitored Start/Restart

EDM Feedback input for external contactors monitoring. With screw terminal blocks

Safety level	PL e
Safety level (SIL / PL)	PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	≤ 20
Signalling	LEDs indication for status and diagnostic: power supply, channel 1 and channel 2
Connections	Removable terminal blocks, screw contacts
MTTFD (ISO13849) years	The values depend on the type of use. Refer to the technical manual
PFHD (IEC 61508)	The values depend on the type of use. Refer to the technical manual
Safety devices to be connected	Emergency stop buttons and safety switches
Start/Restart	Manual monitored
Min. switching current at 24 VDC (mA)	6
Safety relay outputs	2 NO (6A at 250 VAC)
Product class	C

Dimensions HxWxD (mm)	99 x 22,5 x 114,5
Degree of protection	IP2X
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard

Safety level	PL e
Safety level (SIL / PL)	PL e - Cat. 4
Operating temperature (°C)	- 30 ... 55
Response time (ms)	≤ 20
Signalling	LEDs indication for status and diagnostic: power supply, channel 1 and channel 2
Connections	Removable terminal blocks, screw contacts
MTTFD (ISO13849) years	The values depend on the type of use. Refer to the technical manual
PFHD (IEC 61508)	The values depend on the type of use. Refer to the technical manual
Safety devices to be connected	Emergency stop buttons and safety switches
Start/Restart	Manual monitored
Min. switching current at 24 VDC (mA)	6
Safety relay outputs	2 NO (6A at 250 VAC)
Product class	C

Dimensions HxWxD (mm)	99 x 22,5 x 114,5
Degree of protection	IP2X
Fastening	35 mm DIN rail fastening according to EN 50022-35 standard
