Admiral with Integrated Blanking Functions

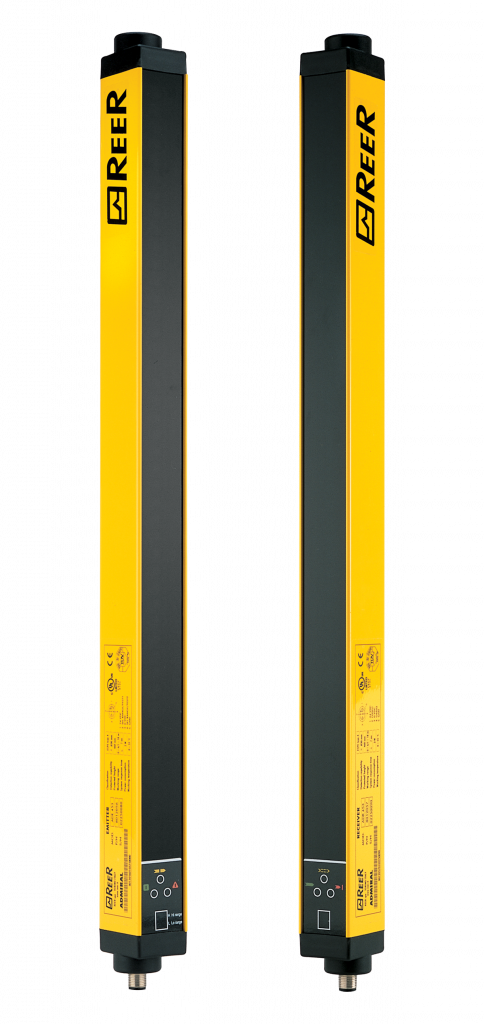

ADMIRAL AX BK

Ideal for protecting press brakes, automatic machines and robotised areas, where the material being processed or moving parts of the machine cross the field protected by the light curtain.

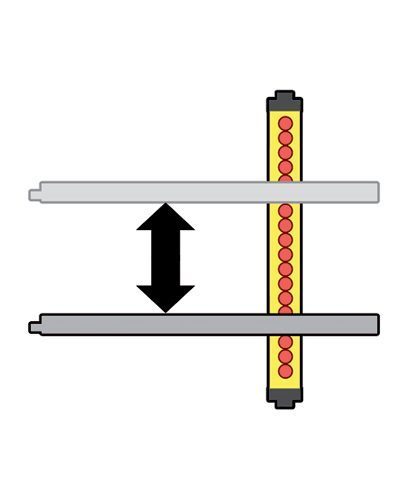

Floating Blanking allows the detected object to move freely inside the light curtain’s protected field, under the condition that the intercepted beams are adjacent and that their number is not higher than the configured one.

5 different configurations of the floating blanking function

  • Mode A1: 1 beam without compulsory object presence
    1 beam can be obstructed with the light curtain remaining in an ON condition
  • Mode A2: 2 beams without compulsory object presence
    1 or 2 adjacent beams can be obstructed with the light curtain remaining in an ON condition
  • Mode A3: 3 beams without compulsory object presence
    1, 2 or 3 adjacent beams can be obstructed with the light curtain remaining in an ON condition
  • Mode B1: 2 beams with compulsory object presence
    At least 1 beam and no more than 2 adjacent beams must be obstructed for the light curtain to remaining in an ON condition
  • Mode B2: 3 beams with compulsory object presence
    At least 1 beam and no more than 3 adjacent beams must be obstructed for the light curtain to remaining in an ON condition
Data sheet
