用于安全设备的安全集成控制器和接口
用于安全设备的安全集成控制器和接口
可编程的安全控制器可以保护机器和工厂安全。安全控制器具备监控多个安全传感器和指令的能力,例如:安全光幕,安全激光扫描仪,安全光电,机械开关,安全地毯,急停按钮,双手控制,这些都可以由安全模块统一并且灵活的控制。
安全接口是一个用于装备着自动控制静态输出的安全光幕和机械设备控制电路之间的专用接口.
基本特征
![](https://www.reersafety.com/wp-content/uploads/2021/08/digital_input.png)
安全输入
我们可以对不同类型的输入进行分类:
- 个数字输入
- 启动/重启输出和EDM
- 接近开关和增量编码器的输入
- 个模拟输入
![safety output](https://www.reersafety.com/wp-content/uploads/2021/08/safety_output.png)
安全输出
- OSSD (static semiconductor safety outputs) 双通道
- OSSD (static semiconductor safety outputs) 单通道
- 大电流安全输出单通道(每通道最大 2A)(2A max per channel)
![](https://www.reersafety.com/wp-content/uploads/2021/08/test_output.png)
测试输出
测试输出信号用于监控输入线上的过载和短路
![safety output](https://www.reersafety.com/wp-content/uploads/2021/08/safety_output.png)
可编程信号输出
状态输出信号是可编程的 SIL 1 / PL c 输出,可以指示以下状态: 输入。 逻辑图的输出或节点
![](https://www.reersafety.com/wp-content/uploads/2021/08/Icone_rele.png)
安全继电器输出
带导向触点的安全继电器。 安全继电器提供两个 N.O. 除了 N.C. 反馈触点外,还有一个 N.C. 触点
我们的安全控制器和接口的特点

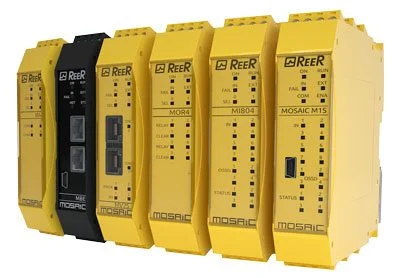

Mosaic是一款可为机器或工厂提供保护的安全控制器.
可编程、可扩展.
可降低成本及最少使用线路.
MZERO是一个在工厂或针对于机器可以编程配置的去管理所有安全功能设置的模块
可编程控制,减少成本和布线.
安全接口是一个用于装备着自动控制静态输出的安全光幕和机械设备控制电路之间的专用接口. 安全光幕、安全开关、双手控制和急停模块.
特点
![模块化的](https://www.reersafety.com/wp-content/uploads/2021/02/true.png)
模块化的
![可配置](https://www.reersafety.com/wp-content/uploads/2021/02/true.png)
可配置
![单一功能 / 多-功能](https://www.reersafety.com/wp-content/uploads/2021/02/close.png)
单一功能 / 多-功能
![状态显示](https://www.reersafety.com/wp-content/uploads/2021/02/true.png)
状态显示
![配置软件](https://www.reersafety.com/wp-content/uploads/2021/02/true.png)
配置软件
![存储卡](https://www.reersafety.com/wp-content/uploads/2021/02/true.png)
存储卡
特点
![模块化的](https://www.reersafety.com/wp-content/uploads/2021/02/close.png)
模块化的
![可配置](https://www.reersafety.com/wp-content/uploads/2021/02/true.png)
可配置
![单一功能 / 多-功能](https://www.reersafety.com/wp-content/uploads/2021/02/close.png)
单一功能 / 多-功能
![状态显示](https://www.reersafety.com/wp-content/uploads/2021/02/true.png)
状态显示
![配置软件](https://www.reersafety.com/wp-content/uploads/2021/02/true.png)
配置软件
![存储卡](https://www.reersafety.com/wp-content/uploads/2021/02/close.png)
存储卡
特点
![模块化的](https://www.reersafety.com/wp-content/uploads/2021/02/close.png)
模块化的
![可配置](https://www.reersafety.com/wp-content/uploads/2021/02/close.png)
可配置
![单一功能 / 多-功能](https://www.reersafety.com/wp-content/uploads/2021/02/true.png)
单一功能 / 多-功能
![状态显示](https://www.reersafety.com/wp-content/uploads/2021/02/true.png)
状态显示
![配置软件](https://www.reersafety.com/wp-content/uploads/2021/02/close.png)
配置软件
![存储卡](https://www.reersafety.com/wp-content/uploads/2021/02/close.png)
存储卡
系统功能
![]() | 安全输入最多 128 个 |
![]() | 个模拟输入最多 16 个(带扩展) |
![]() | 安全输出最多 32 个 (SIL 3) |
![]() | 可编程信号输出最多 48 个 (SIL 1) |
![]() | 安全继电器输出最多 32 个(带扩展) |
![]() | 逻辑运算符128 |
系统功能
![]() | 安全输入16 |
![]() | 个模拟输入- |
![]() | 安全输出4 (SIL 3) |
![]() | 可编程信号输出4 (SIL 1) |
![]() | 安全继电器输出最多 4 个(带扩展) |
![]() | 逻辑运算符64 |
接口
![]() | AD SR0 - AD SR0A2 NO + 1 NC |
![]() | AD SRE3 - AD SR3 C3 NO + 1NC - Automatic/Manual restart |
![]() | AD SRE4 - AD SRE4C3 NO + 1NC - Automatic/manual restart |
![]() | AD SRT2 NO + 1 NC |
![]() | SV MR0 - 速度监控2 NO |
![]() | SV MR0 U - 速度监控2 NO |
ESPANSION UNITS
![]() | 安全继电器单元 | ![]() |
![]() | 速度监控 | ![]() |
![]() | 模拟量输入 | ![]() |
![]() | 现场总线 | ![]() |
![]() | 高电流输出 | ![]() |
扩展模块单元
![]() | 安全继电器单元 | ![]() |
![]() | 速度监控 | ![]() |
![]() | 模拟量输入 | ![]() |
![]() | 现场总线 | ![]() |
![]() | 高电流输出 | ![]() |
接口
![]() | SR SELECT2 NO |
![]() | SR ZERO - SR ZERO A2 NO + 1 NC |
![]() | SR ONE - SR ONE M2 NO |
![]() | SR E4 - SR E4 C2 NO - Automatic/manual restart |
![]() | SR T2 NO |
![]() | SR X - SR XM2 NO |
紧固方法![]() 导轨紧固 | 卸的端子块![]() 螺丝,夹具 |
紧固方法![]() 导轨紧固 | 卸的端子块![]() 螺丝,夹具 |
紧固方法![]() 导轨紧固 | 卸的端子块![]() 螺丝,夹具 |
安全水平![]() PL e - SILCL 3 - Cat. 4 | 防护等级![]() IP20 |
安全水平![]() PL e - SILCL 3 - Cat. 4 | 防护等级![]() IP20 |
安全水平![]() PL e - SILCL 3 - Cat. 4 | 防护等级![]() IP20 |
