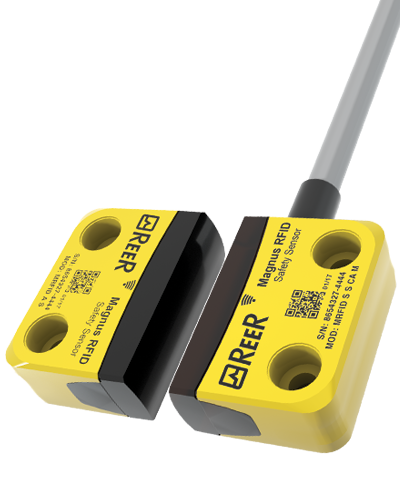

MAGNUS MRFID C S UA 5

PL e

Safety level

RFID switches

Sensor type

Unique coding

Coding type

8 … 18

Switching distance (mm)

Request info

Unique Coding: the actuator is permanently assigned to the sensor during manufacturing (it cannot be replaced with another actuator)

Product Catalogues and Brochures

TÜV SÜD certificate - Magnus MG

Download

UL Mark for USA and Canada

Download

CAD Drawing

Technical drawings

Technical Description

Unique Coding: the actuator is permanently assigned to the sensor during manufacturing (it cannot be replaced with another actuator)

Product Catalogues and Brochures

Certificates

TÜV SÜD certificate - Magnus MG

Download

UL Mark for USA and Canada

Safety level	PL e
Safety inputs	2 digital inputs
Safety level (SIL / PL)	SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 25 ... 70
Response time (ms)	75
Sensor type	RFID switches
Safety output type	2 OSSD (400 mA at 24 VDC) with protection against short circuit
Materials suitable for food applications	Yes
Min. switching current at 24 VDC (mA)	400
Safety outputs	2 OSSD pairs (400 mA)
Test outputs	1
LED signalling	3 colour LED status signalling
Packaging dimensions HxLxW (mm)	35 x 240 x 170
Coding type	Unique coding
Product class	C
Custom tariff	9032890

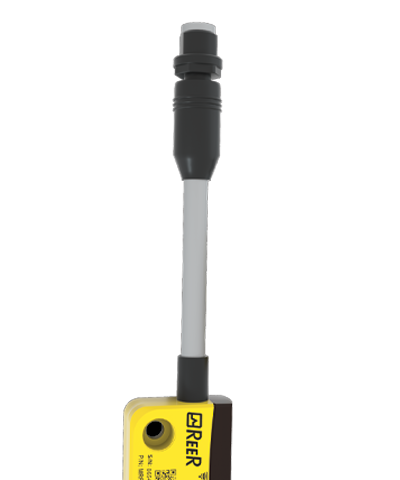

Connection type	Cable

Dimensions HxWxD (mm)	26 x 36 x 13
Degree of protection	IP67 - IP69K (connector excluded)
Fastening	M4 screws with flat head (e.g. M4 cheese head screws ISO 4762)
Housing	PBT / PC rectangular
Gross weight (g)	360
Switching distance (mm)	8 … 18
Size	22 mm interaxis

Safety level	PL e
Safety inputs	2 digital inputs
Safety level (SIL / PL)	SIL 3 - SILCL 3 - PL e - Cat. 4
Operating temperature (°C)	- 25 ... 70
Response time (ms)	75
Sensor type	RFID switches
Safety output type	2 OSSD (400 mA at 24 VDC) with protection against short circuit
Materials suitable for food applications	Yes
Min. switching current at 24 VDC (mA)	400
Safety outputs	2 OSSD pairs (400 mA)
Test outputs	1
LED signalling	3 colour LED status signalling
Packaging dimensions HxLxW (mm)	35 x 240 x 170
Coding type	Unique coding
Product class	C
Custom tariff	9032890
Connection type	Cable

Dimensions HxWxD (mm)	26 x 36 x 13
Degree of protection	IP67 - IP69K (connector excluded)
Fastening	M4 screws with flat head (e.g. M4 cheese head screws ISO 4762)
Housing	PBT / PC rectangular
Gross weight (g)	360
Switching distance (mm)	8 … 18
Size	22 mm interaxis
